1. Instant Payment Notification (C2B)

On receiving a transaction, Sapama Cash will instantly send you the notification to the "Instant Payment Notification (IPN)" settings set under the till.

Sample Code:
PHP

Step 1:

  1. Video how to intiate or test or simulate the Instant Payment Notification click on this link
  2. Login to your Sapama Cash account or click on this link
  3. Click on Tills menu or click this link
  4. In the far right of the till, click on this "Edit" icon
  5. Go to the "Instant Payment Notification (IPN)" section
  6. Set the "Callback active" to "Yes"
  7. Set the "Callback HTTP method" of your URL ie POST or GET. Please ensure you use $_GET or $_POST to capture the values and not JSON
  8. Set the "Callback url" that your want payment notification will be sent with http://, https:// or IP as. eg https://sapamacash.com/payment_notification
  9. Optional: If you want us to pass extra parameters in the request, set them as valid JSON in the "Extra parameters (JSON)" eg
    {"property_ids":[728,729,735]}

Step 2:

If you are using PHP, you can capture the fields like this or download this sample PHP

                if( isset( $_POST['trans_type'] ) &&  strlen( $_POST['trans_type'] )){
                $trans_type = $_POST['trans_type'];
                }

                if( isset( $_POST['trans_amount'] ) &&  strlen( $_POST['trans_amount'] )){
                $trans_amount = $_POST['trans_amount'];
                }

Implement your code to listen to the notification

We'll post the following. Depending if you've configured your calleback as HTTP GET or POST, kindly ensure you use $_GET or $_POST to capture the values and not JSON


        {
        "organization_id": 2,//Organization ID on Sapama Cash system
	"customer_id": 50,//Customer ID on Sapama Cash system
	"location_id": 2,//Till ID on Sapama Cash system
	"trans_type": "Customer Merchant Payment",//From the gateway eg MPESA
	"trans_id": "OQWEREDS",//Gateway transction ID eg MPESA code
	"trans_time": "20200709220327",//Transaction time in this format - YmdHis
	"date": "2020-07-09",//Date of the transaction in this format Y-m-d
	"trans_amount": 350,//Transaction amount
	"short_code": "830830",//Short code
	"bill_ref_number": "Sapama - 305694",//Account number
	"description": "",//Description
	"org_account_balance": "65600.17",//Organization balance
	"phone": "254722906835",//Phone number
	"first_name": "JOHN",
	"middle_name": "OMONDI",
	"last_name": "KAMAU",
	"status": "received",//Status - Received means that the money has been received
	"reference_number": "",//In case of Checkout - The unique identifier of the transaction on your system
	"type": "receipt",//Can be receipt or invoice
	"proxy_trans_id": 305695,//Transaction ID on on Sapama Cash system
	"proxy_trans_uuid": "trans_5f0de4e0d2ebc", //Transaction ID on on Sapama Cash system
	"invoice_id": 305694,//In case of Checkout, this is the transaction ID of the invoice when the checkout was initiated. You can use this to cross reference as well.
	"invoice_uuid": "trans_5f0de4a7740b8",//Same as invoice_id
	"api_key": "",//API Key
	"hash": "a760c88594bedf7702271c378d641c0da6512980ce513bebf557c7ede6aaf596",
        "third_party_message"=>"Success",//Message from the gateway message
}

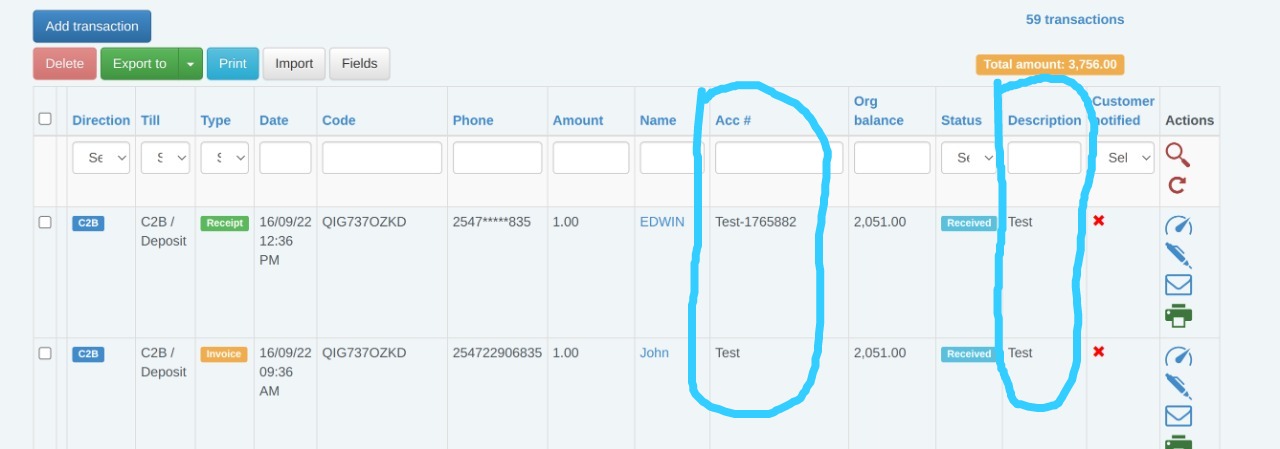

Important to note is the difference between the between "bill_ref_number" and "description" in the response. NB: if not clear, kindly contact support for clarification


'description' -- Used to identify the account eg username or phone number, you can use this to check for the account without making any changes to it is supporting both STK push and normal payments
'bill_ref_number' -- Also, Used to identify the account eg username or phone number and will be displayed on the screen on STK push. When, supporting both STK push and normal payments, when using this to verify the account, ensure that you check the first part eg if you passed "john" on the STK push, the account number will be "john-111111" where 111111 is the primary key on Sapama, so you'll need to split using the explode function and only check the first part. When someone pays normally, the exploded array will only have one value. For STK push, the explode array will have two parts and use the first index

Step 3:

For the handshake to be complete, after processing the transaction on your end, kindly return or echo the following JSON object so that we can update the transaction as reconciled on your end.
                {
		"type": "success",
		"message": "Transaction reconciled successfully"
                }
The "type" index can have the following values:
                no : 'Not yet ipned. This is the default status',
                success:'Successfully recorded in your system',
                error:'A System error occurred when trying to reconcile',
                unreconciled:'An error occurred when trying to reconcile eg that transaction is in SapamaCash.com but not in your system',

Step 4:

To send or simulate a transaction, you don't have to make an actual MPESA or Equitel transaction every time, if there are no transaction, make one actual transaction, and UPDATE it as long as the ipned status IS NOT equal to "success" by click on this "Edit" icon . The system will send or push the transaction to your server. Kindly note that if the ipned status is "success", the IPN WILL NOT be sent

Transaction Validation:

It's possible to enable validation that will be done on the merchant's side. Just before the transaction is confirmed, a request is sent to the merchants server via an endpoint to check if the transaction is valid or not. Eg your could check if the account number exists or if the amount is the same as the amount that's supposed to be paid.

Step 1:

  1. Login to your Sapama Cash account or click on this link
  2. Click on Tills menu or click this link
  3. In the far right of the till, click on this "Edit" icon
  4. Go to the "Instant Payment Notification (IPN)" section
  5. Set the "C2B Validation active" to "Merchant URL Validation"
  6. Set the "C2B Validation HTTP method" of your URL ie POST or GET
  7. Set the "C2B Validation URL" that your want payment notification will be sent with http://, https:// or IP as. eg https://sapamacash.com/payment_notification
  8. Optional: If you want us to pass extra parameters in the request, set them as valid JSON in the "C2B Validation extra parameters (JSON) " eg
    {"property_ids":[728,729,735]}

Step 2:

Implement your code to listen to the notification

We'll post the following

        {
	"type": "receipt",
	"trans_type": "Customer Merchant Payment",
	"trans_id": "I",
	"trans_time": "2020-07-09 22:03:27",
	"trans_amount": "350.00",
	"short_code": "830830",
	"org_account_balance": "65600.17",
	"phone": "254722906835",
	"bill_ref_number": "Acc#", - The Account number passed by the customer
	"first_name": "MICHAEL",
	"middle_name": "MUNGAI",
	"last_name": "MWENJA",
	"location_id": "2",
	"api_key": "",
	"hash": "96f831f457d3ff962a04b4fa8138d054550432e6abaade10102eda8eb5aed87d",
	"ip": "41.80.116.239",
	"agent": "Guzzle\/4.2.4 curl\/7.58.0 PHP\/5.6.40-29+ubuntu18.04.1+deb.sury.org+1"
}

If you are using PHP, you can capture the fields like this or download this sample PHP

                if( isset( $_POST['trans_type'] ) &&  strlen( $_POST['trans_type'] )){
                $trans_type = $_POST['trans_type'];
                }

                if( isset( $_POST['trans_amount'] ) &&  strlen( $_POST['trans_amount'] )){
                $trans_amount = $_POST['trans_amount'];
                }

Step 3:

For the handshake to be complete, after processing the transaction on your end, kindly return or echo the following JSON object so that we can respond to the payment processor to accept or reject the payments

Depending on the validation/check, you return the following json Success / Valid / Accept payment

                {
		"type": "success",
		"message": "Validation successful"
                }
Reject payment or don't accept payment
                {
		"type": "error",
		"message": "Validation failed"
                }

2. Custom SMS

On receiving a transaction, Sapama Cash can send a customised SMS to your customer.

Step 1:

  1. Login to your Sapama Cash account or click on this link
  2. Click on Tills menu or click this link
  3. In the far right of the till, click on this "Edit" icon
  4. Go to the "Instant Payment Notification (IPN)" section
  5. Set the "Thank customers" to "Yes"
  6. Set your "Sms gateway". For new accounts this should be "Africa's Talking"
  7. Set your "Sms sender id / Alphanumeric". This is the custom name that will be used. This customer name needs to be registered with Africa's Talking
  8. Set the "Sms template" and use the following placeholders. All parameters are prepended with a : (full colon)
  9. FIELDS ARE CASE SENSITIVE
    10.                         :name - Customer name
                        :currency - 'KES',
                        :amount - Transaction amount
                        :points - Points if running a loyalty scheme,
                        :transid - MPESA or Equitel transaction code
                        :proxytransid - Sapama Cash transaction id,
                        :billrefnumber - MPESA or Equitel account number,
                        :date - transaction date in d/m/Y fromat ,
                        :location' - Name of the till

3. Get Transactions

Get a single or a list of transactions

This API will return a list of transactions. You can also filter by phone number or MPESA transaction code or status.

This API is useful if you have an off-line system eg a POS or ERP and need to get a list of all the transactions.

If you are getting the list of un-reconciled transaction, to avoid getting the same transactions again every time you you make a call to the "Get Transactions" API, you'll update the transaction that has been assigned to a sale using the "Update Transactions" API (below). This API will update the transaction status and indicate that it has been reconciled, this way it will not appear in the next request.

Link:
https://sapamacash.com/api/get_transactions
HTTP TYPE:
GET
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 trans_id string MPESA confirmation Code 0
5 id int Integer Transation ID or Invoice ID eg 121323 0
6 uuid int Unique Transation ID or Invoice ID eg trans_SFSDF12S 0
7 phone integer Customer phone number with 254 and without + eg 25472200000 0
7 ipned string By default the API will return all un-reconciled transactions. This parameter is optional and if not included the API will return on UN-reconciled transactions (ie with ipned status received). If you are getting a single transaction irrespective of the status set ipned to any 0
8 page integer The page of the pagination to return eg page 1, 2 0
7 per_page integer Number of transactions to be returned to return in a given page eg return 20 transactions (Defaults to 50)

0

Returns

If you check the transaction object, there is an optional transaction object. This is the corresponding invoice or receipt of the initial transaction.

For instance, when you make an STK push checkout request using the "Checkout" API, we'll create an invoice and save in the database. When the customer complete the payment, we'll create a receipt for the invoice created before. So if you check the invoice, it will have a transaction object of the receipt.

Likewise, if you get the receipt, there will be a corresponding transaction object of the invoice.

Action Http status code Note Example
Success 200 List of transactions. Check the "data" parameter it will have an array of the transactions.

If you check the transaction object, there is an optional transaction object. This is the corresponding invoice or receipt of the initial transaction.

For instance, when you make an STK push checkout request using the "Checkout" API, we'll create an invoice and save in the database. When the customer complete the payment, we'll create a receipt for the invoice created before. So if you check the invoice, it will have a transaction object of the receipt.

Likewise, if you get the receipt, there will be a corresponding transaction object of the invoice.

{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "Transactions list",
	"data": {
		"total": 1,
		"per_page": 2,
		"current_page": 1,
		"last_page": 1,
		"from": 1,
		"to": 1,
		"data": [{
			"id": "380222",
			"uuid": "trans_5f1077b2e5e68",
			"organization_id": "255",
			"customer_id": "173846",
			"location_id": "266",
			"category_id": "0",
			"trans_type": "c2b",
			"trans_id": "OGG9SXHEST",
			"trans_time": "2020-07-16 15:52:18",
			"date": " 16\/07\/20 03:52 PM",
			"trans_amount": "1.00",
			"description": "API Integrations",
			"short_code": "",
			"bill_ref_number": "API Integrations",
			"invoice_number": "",
			"org_account_balance": "32.00",
			"third_party_trans_id": "22027-17924288-1",
			"phone": "254722906835",
			"name": "Edwin Mugendi Riungu",
			"first_name": "Edwin",
			"middle_name": "Mugendi",
			"last_name": "Riungu",
			"ipned": "received",
			"smsed": "",
			"emailed": "",
			"ipned_at": "0000-00-00 00:00:00",
			"smsed_at": "0000-00-00 00:00:00",
			"emailed_at": "0000-00-00 00:00:00",
			"customer_notified_at": "0000-00-00 00:00:00",
			"customer_notified": "",
			"message": "",
			"smsed_to": "",
			"emailed_to": "",
			"workflow": "0",
			"agent": "",
			"ip": "159.89.239.200",
			"status": "1",
			"created_by": "173186",
			"updated_by": "173186",
			"created_at": "2020-07-16 15:52:20",
			"updated_at": "2020-07-16 15:53:02",
			"third_party_message": "",
			"payload_response": "",
			"payload_count": "0",
			"gateway": "",
			"callback_url": "http:\/\/make_callback_to_this_link.com\/script\/callback\/mpesa_collection",
			"callback_http_method": "post",
			"b2c_in_status_code": "",
			"b2c_out_status_code": "",
			"b2c_reference_code": "ws_CO_160720201854241584",
			"b2c_account_balance_utility": "0",
			"b2c_account_balance_charges": "0",
			"mode": "",
			"direction": "c2b",
			"b2c_account_balance": "0",
			"reference_number": "REF2602",
			"type": "invoice",
			"currency": "KES",
			"environment": "live",
			"flow": "stkpush",
			"image_url": "image_url",
			"item_id": "0",
			"simulate": "",
			"b2c_request_payload": "",
			"b2c_response_payload": "",
			"address": "Address",
			"transaction_id": "380224",
			"date_original": "2020-07-16",
			"actions": "",
			"trans_amount_original": "1.00",
			"trans_time_unix": 1594914738,
			"transaction": {
				"id": "380224",
				"uuid": "trans_5f1077dba6139",
				"organization_id": "255",
				"customer_id": "173846",
				"location_id": "266",
				"category_id": "0",
				"trans_type": "Pay Bill",
				"trans_id": "OGG9SXHEST",
				"trans_time": "2020-07-16 18:55:37",
				"date": "2020-07-16",
				"trans_amount": "1.00",
				"description": "API Integrations",
				"short_code": "830830",
				"bill_ref_number": "API Integrations-380222",
				"invoice_number": "",
				"org_account_balance": "32.00",
				"third_party_trans_id": "",
				"phone": "254722906835",
				"name": "EDWIN MUGENDI RIUNGU",
				"first_name": "EDWIN",
				"middle_name": "MUGENDI",
				"last_name": "RIUNGU",
				"ipned": "received",
				"smsed": "",
				"emailed": "y",
				"ipned_at": "0000-00-00 00:00:00",
				"smsed_at": "0000-00-00 00:00:00",
				"emailed_at": "2020-07-16 15:53:04",
				"customer_notified_at": "0000-00-00 00:00:00",
				"customer_notified": "",
				"message": "",
				"smsed_to": "",
				"emailed_to": "edwin@sapamatech.com",
				"workflow": "1",
				"agent": "Agent",
				"ip": "127.0.0.1",
				"status": "1",
				"created_by": "1",
				"updated_by": "1",
				"created_at": "2020-07-16 15:53:02",
				"updated_at": "2020-07-16 15:53:04",
				"third_party_message": "",
				"payload_response": "",
				"payload_count": "0",
				"gateway": "mpesa",
				"callback_url": "",
				"callback_http_method": "",
				"b2c_in_status_code": "",
				"b2c_out_status_code": "",
				"b2c_reference_code": "",
				"b2c_account_balance_utility": "0",
				"b2c_account_balance_charges": "0",
				"mode": "live",
				"direction": "c2b",
				"b2c_account_balance": "0",
				"reference_number": "REF2602",
				"type": "receipt",
				"currency": "",
				"environment": "",
				"flow": "",
				"image_url": "",
				"item_id": "0",
				"simulate": "",
				"b2c_request_payload": "",
				"b2c_response_payload": "",
				"address": "",
				"transaction_id": "380222"
			}
		}],
		"controller": "transaction",
		"package": "payments",
		"imageable": 0,
		"action": ""
	}
}
Error 400 Validation error
{
  "http_status_code": 400,
  "system_code": 900,
  "message": "Input validation failed.",
  "data": [
    {
      "field": "token",
      "error": "Invalid login token"
    }
  ]
}

4. Update Transaction

Update transaction

This API is useful if you have an off-line system eg a POS or ERP and need to get a list of all the transactions.

If you are getting the list of un-reconciled transaction, to avoid getting the same transactions again every time you you make a call to the "Get Transactions" API, you'll update the transaction that has been assigned to a sale using the "Update Transactions" API (below). This API will update the transaction status and indicate that it has been reconciled, this way it will not appear in the next request.

Link:
https://sapamacash.com/api/update_transaction
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 id integer The transaction id (Not MPESA transaction id) 1
5 ipned string no : 'Not yet ipned. This is the default status',
success:'Successfully recorded in your system',
error:'A System error occurred when trying to reconcile',
unreconciled:'An error occurred when trying to reconcile eg that transaction is in SapamaCash.com but not in your system',		 1

Returns

Action Http status code Note Example
Success 200 Transaction updated
{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "Transaction updated",
	"data": {
		"id": "1"
	}
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"api_key","error":"Invalid hash"}]}

4. Post a transaction. It will create a record in the transactions table

Get transactions

Link:
https://sapamacash.com/api/post_transaction
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 first_name string First name 0
5 middle_name string Middle name 0
6 last_name string Last name 0
7 trans_type string Transaction type 0
8 trans_id string Unique transaction reference number. Should be unique to avoid duplication 1
9 trans_time string in this format Y:m:d H:i:s 1
10 trans_amount float The amount 1
11 short_code string Used to identify the this till
12 org_account_balance float The account balance
13 phone int Phone number
14 bill_ref_number string Same as account or customer number 0
15 invoice_number string Invoice number 0
16 description string Note 1
17 third_party_trans_id string Unique identifier on your system eg primary key on your system 0

Returns

Action Http status code Note Example
Success 200 Transaction updated
{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "Succeed.",
	"data": [{
		"third_party_trans_id": "third_party_trans_id",
		"trans_id": "trans_id",
		"sapama_id": 290047,
		"type": "success",
		"message": "Success"
	}]
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"api_key","error":"Invalid hash"}]}

5. B2C (Business to Customer)

API to make Business to Customer transaction ie pay a customer directly from your account to their mobile money account

Link:
https://sapamacash.com/api/b2c
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 location_id integer The location id get this by logging in a going to Tills and using number in the first column or # 1
5 mode string live : Production or live environment
sandbox:Sandbox or test environment
1
6 beneficiaries array

Parameters / indexes / keys in the beneficiary

# Field Data type Note Required / Optional
1 gateway string mpesa : Payout via MPESA
equitel :Payout via Equitel
 1
2 phone integer phone number to payout to including country code eg 254722906835 1
3 trans_id string Transaction id. This is the unique identifier of this transaction on your system. We'll send it back so that you can identify this transaction eg TRANXYZ 1
4 first_name string First name eg Otieno 1
5 description string Description eg Salary 1
6 last_name string Last name eg Kamau 1
7 amount float Amount eg 100.55 1
8 callback_url url Callback URL to return the status of the transaction after sending to the gateway for processing eg https://sapamacash.com/receive_b2c_notification 1
9 callback_http_method string HTTP method to call the callback with get : GET to the callback URL
post:POST to the callback URL
 1
10 message string Custom message that will be sent via SMS AFTER a successful transaction. You can also set it in the B2C template under the till eg Thanks you Kamau for making the payment. 0
11 short_code integer Gateway short code eg For MPESA, use Paybill number 1
12 currency string currency code eg KES 1
13 bill_ref_number string Another number that can be used to reference this transaction eg the customers account number or user id 0
1

Returns

Action Http status code Note Example
Success 200 we turn an array in the "data" parameter. Loop through it and check for the "trans_id" that will be used to
{
    "httpStatusCode": 200,
    "systemCode": 700,
    "message": "2 transactions of 2 (100%) scheduled for B2C",
    "data": [
        {
            "status": "success",
            "message": "Success",
            "proxy_trans_id": 305528,
            "trans_id": "trans_reference",
            "phone": "0722906830",
            "amount": "100"
        },
        {
            "status": "success",
            "message": "Success",
            "proxy_trans_id": 305529,
            "trans_id": "trans_reference",
            "phone": "0722906832",
            "amount": "100"
        }
    ]
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"beneficiaries","error":"trans_reference at beneficiaries 0 should be set and it identifies this transaction on your system. Best if it's unique"}]}

6. Checkout

This API is used to intiate a checkout. A checkout is a request for payment that will allow the customer to complete the payment.

Link:
https://sapamacash.com/api/checkout
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 api_key string API key 1
2 first_name string John 1
3 middle_name string Mwangi 1
4 last_name string Otieno 1
5 email string info@company.com 1
6 phone string 254722.... include country code 1
7 description string Item X 1
8 address string John Mwangi Otieno, P.O.Box 10231 Nakuru 1
9 amount float 1000 - without comma 1
10 currency string KES 1
11 reference_number string Number that uniquely identifies the transaction on your system. Eg the Order ID or primary key of your transactions table 1
12 bill_ref_number string The equivalent of the account number used to identify that customer. Eg customer number 1
13 location_id integer The location id get this by logging in a going to Tills and using number in the first column or # 1
14 format string json 1
15 flow string Can be:

1. stkpush - This will intiate an STK push to the customers phone number

2. form - Coming soon

3. redirect - Coming soon

4. iframe - Coming soon

 1
16 environment string live 1
17 callback_url string url that the response will be sent to. 1
18 callback_http_method string Call back HTTP method ie can be get or post 1
19 image_url string URL to an image that could be displayed in the payment form 1

Returns

Action Http status code Note Example
Success 200 1 smses of 1 (100%) scheduled for sending
{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "Succeed.",
	"data": {
		"invoice_uuid": "trans_5f201281619c5",
		"invoice_id": 386578,
		"reference_number": "1595937591",
		"type": "success",
		"code": 200,
		"message": "STK push initiated, a response will be sent back to the callback URL"
	}
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"beneficiaries","error":"trans_reference at beneficiaries 0 should be set and it identifies this transaction on your system. Best if it's unique"}]}

7. SMS

API to send SMS to an array of phone numbers. Messages can be different for each phone number

Link:
https://sapamacash.com/api/sms
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 location_id integer The location id get this by logging in a going to Tills and using number in the first column or # 1
6 to array

Parameters / indexes / keys in the beneficiary

# Field Data type Note Required / Optional
1 phone integer phone number to payout to including country code eg 254722906835 1
2 message string SMS Message eg \'Hello Customer'\ 1
1

Returns

Action Http status code Note Example
Success 200 1 of 1 (100%) scheduled for SMS
{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "1 smses of 1 (100%) scheduled for sending",
	"data": [{
		"status": "success",
		"message": "Success",
		"proxy_trans_id": 12376,
		"phone": "254722906835",
		"amount": "10"
	}]
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"beneficiaries","error":"trans_reference at beneficiaries 0 should be set and it identifies this transaction on your system. Best if it's unique"}]}

8. Intiate B2B

This API initiates a transfer of funds from one paybill to another already on the system

Link:
https://sapamacash.com/api/intiate_transfer
HTTP TYPE:
POST
Sample Code:
PHP

Parameters

# Field Data type Note Required / Optional
1 format string Must be 'json' 1
2 api_key string API key 1
3 hash string Hash 1
4 location_from_id integer The location id get this by logging in a going to Tills and using number in the first column or # 1
5 location_from_id integer The till intiating the transfer. The location id get this by logging in a going to Tills and using number in the first column or # 1
6 amount integer Amount you are transfering 1
7 description string A description or note 1
8 type string This can be one of the Command ID's from M-Pesa can be

BusinessPayBill, MerchantToMerchantTransfer, MerchantTransferFromMerchantToWorking, MerchantServicesMMFAccountTransfer, AgencyFloatAdvance

Returns

Action Http status code Note Example
Success 200 Transfer intiated
{
	"httpStatusCode": 200,
	"systemCode": 700,
	"message": "Intiated",
	"data": {
		"description": "Testing",
		"location_from_id": "2",
		"location_to_id": "245",
		"workflow": "initiated",
		"id": 14
	}
}
Error 400 Validation error
{"httpStatusCode":400,"systemCode":900,"message":"Input validation failed.","data":[{"field":"beneficiaries","error":"trans_reference at beneficiaries 0 should be set and it identifies this transaction on your system. Best if it's unique"}]}
